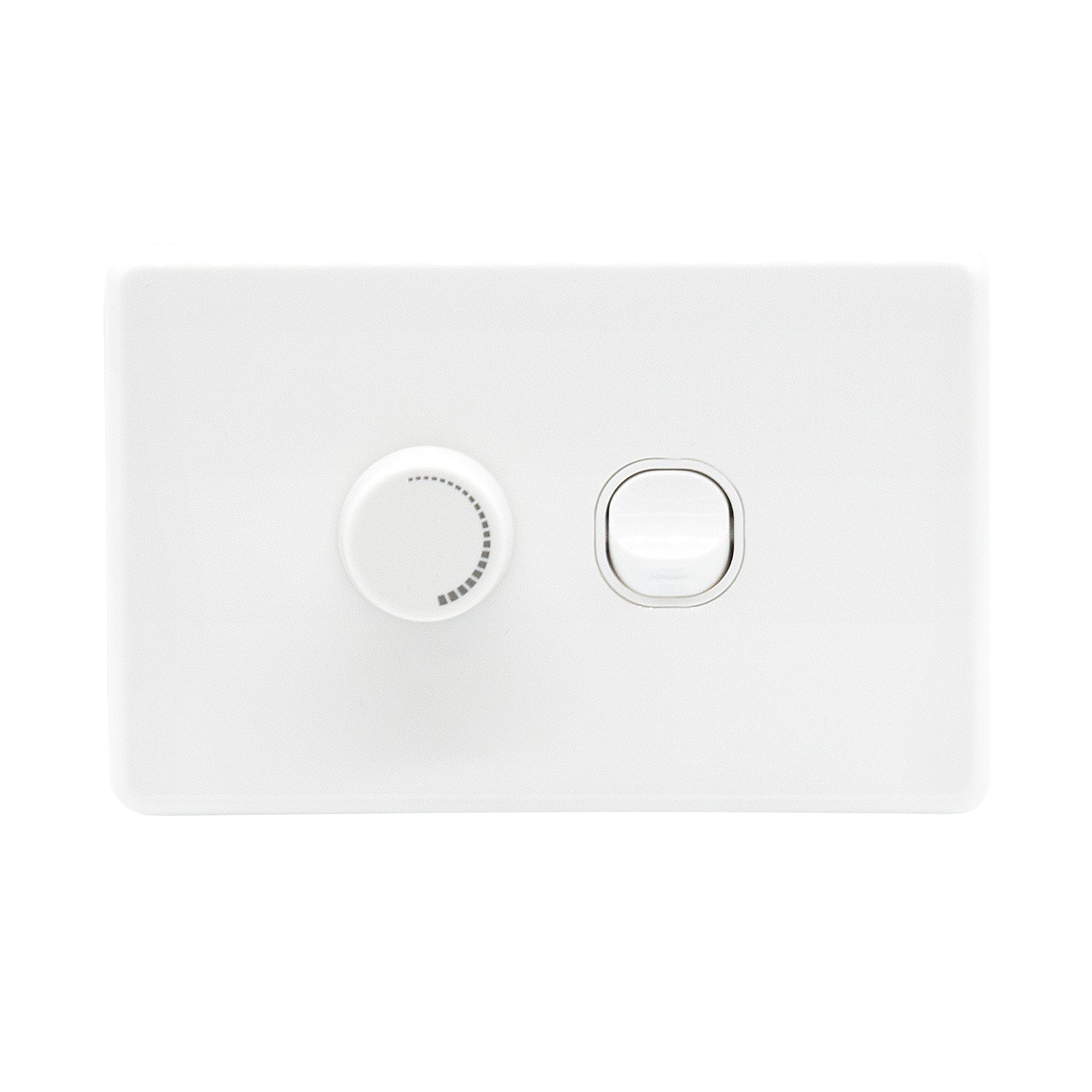

DETA 200W Universal Electronic Dimmer with X6 Series Wall Switch

6180B
Colour:White

DETA Universal dimmer dims LED, electronic drivers, halogen loads, tested with most dimmable LED / load in the market. Sleek design of X6 Series wall switch and new features that allows you to adjust minimum and maximum end of the dimming range.Instant startup and response, 5W minimum load to operate, 100W max load control up to 15 LED globes. Maximum 200W load on Incandescent lights. This product must be installed by a licensed electrician.

  • Retrofit on any existing DETA series wall plate
  • Compact fly-lead design for convenient wiring
  • Dimmer built in over voltage and short circuit protection
  • Two dials are provided to adjust minimum and maximum end of dimming range to avoid flickering
  • Safety and EMC compliant to Australian/NewZeland standard

Electrical products must be installed by a licensed electrician or other installers authorised by legislation to work on the fixed wiring of an electrical installation.

Downloads

Where to Buy

Buy Now

Available at Bunnings

For Trade

Bunnings Trade

Specifications

Colour White
Material Polycarbonate
Wattage 200W
Maximum voltage 250V
Indoor use Yes
Amperage 16A
Number of switches 1
Switch configuration Horizontal
Dimmable Yes
Cover plate included Yes
