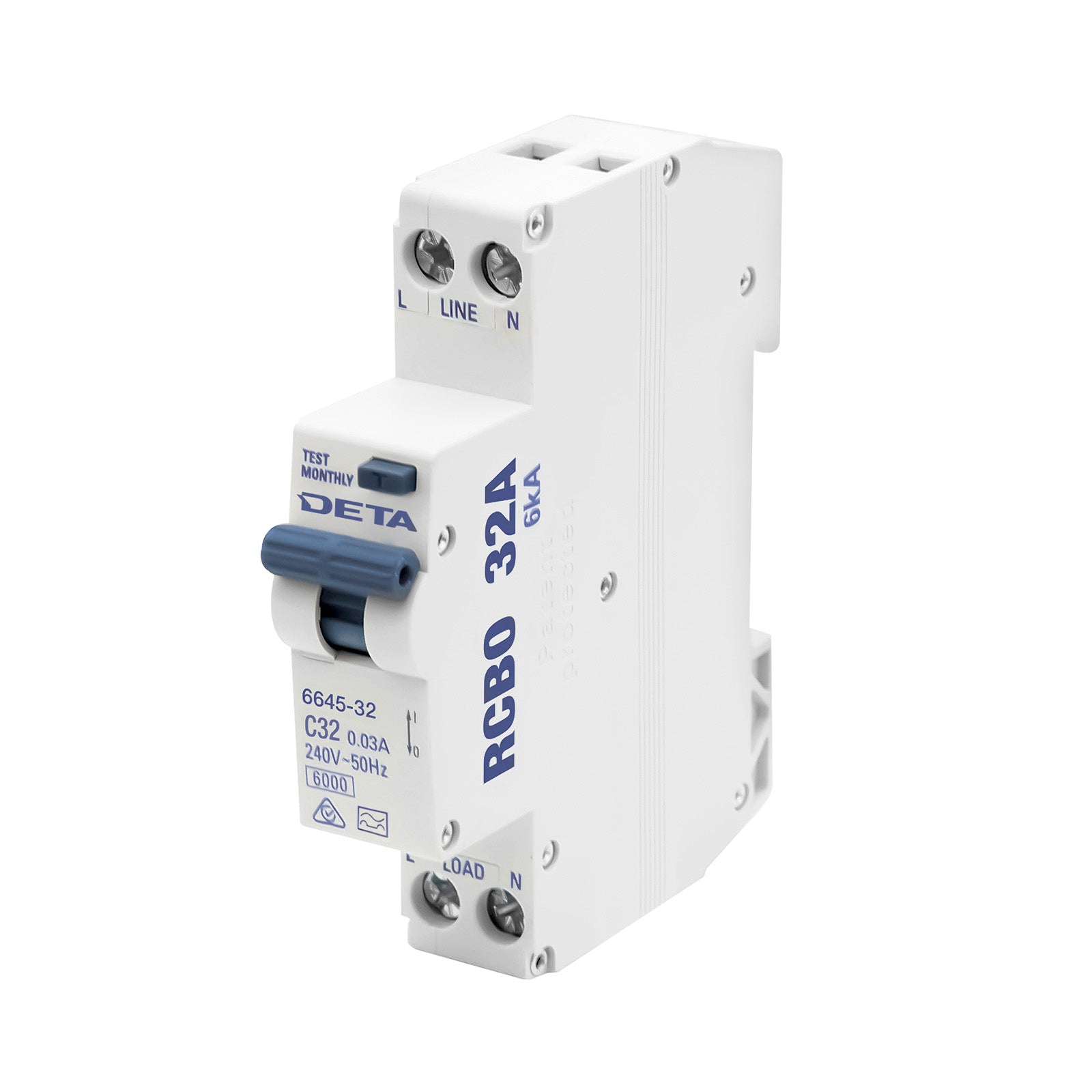

DETA 32A Residual Circuit Breaker with Overload Protection
6645-32B
The DETA 32A (for stove units) Residual Circuit Breaker with Overload protection (RCBO) protects against earth fault/leakage current, overload and short circuit. It has a short circuit capacity rating of 6kA, 30mA, C-type residual tripping current. It is 18mm wide and suitable for DIN rail mounting in flush or surface mounted switchboards or enclosures.
- Short circuit capacity rating of 6kA, 30mA type A residual tripping current
- Suitable for both residential and industrial installation
- Protects against earth fault/leakage current, overload and short circuit
- Easy mounting onto 35mm DIN rail
- Single phase 1P+N, AS/NZS 61009 compliance and ESV listed
Electrical products must be installed by a licensed electrician or other installers authorised by legislation to work on the fixed wiring of an electrical installation.
This product is not available in your region
Specifications
| Colour | White |
| Maximum voltage | 240V |
| Indoor use | Yes |
| Outdoor use | Yes |
| Amperage | 32A |
| Number of poles | 1 |
| Plug in or din rail | Din Rail |
| Switch Type | RCBO |
